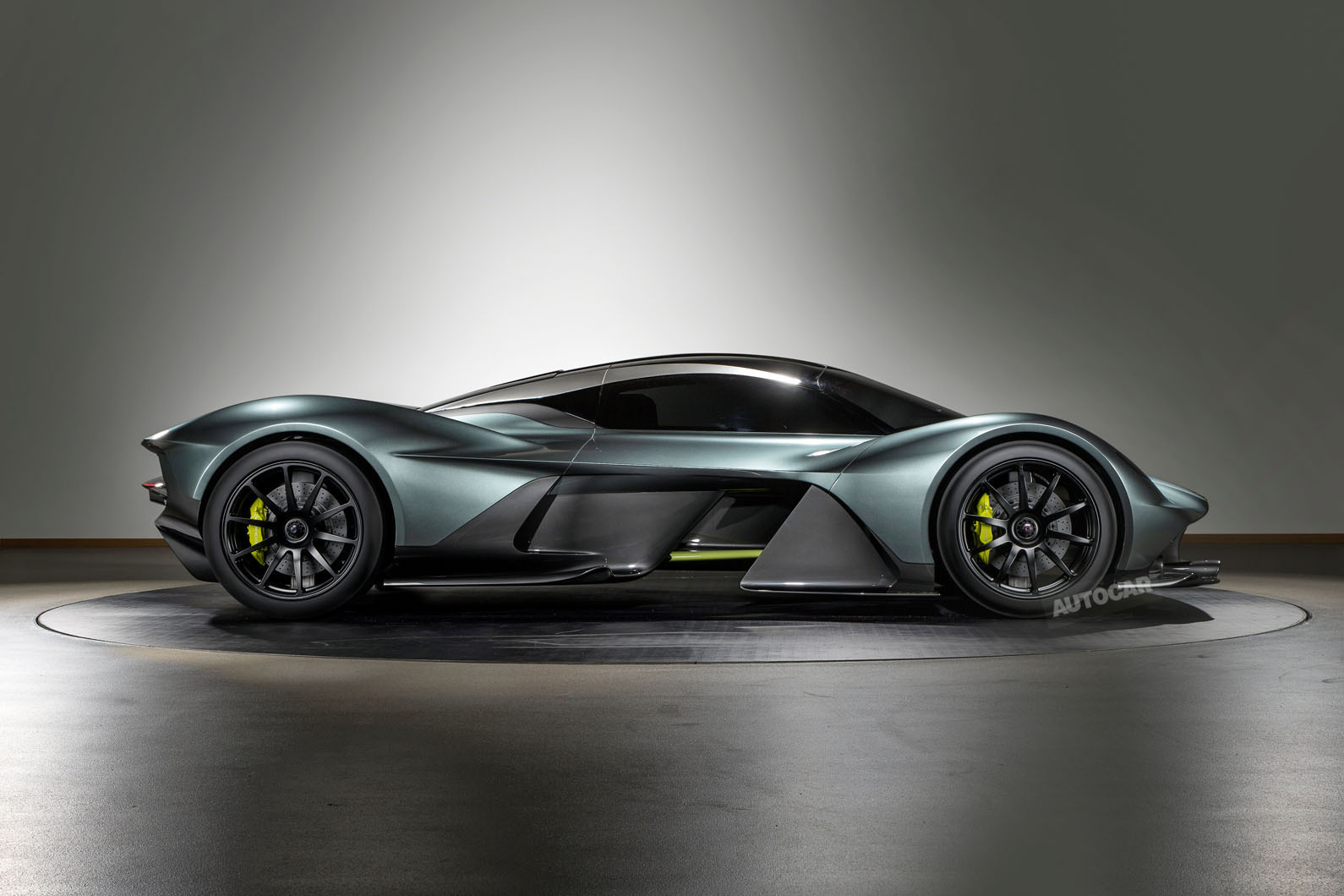

Aston Martin Valkyrie AM-RB 001 - exclusive pictures

Race car driving position

The two-seat hypercar adopts a reclined, feet-up driving position based on an F1 car’s. Further enhancing the aerodynamics is the absence of door mirrors. The AM-RB 001 will instead use rear-facing cameras that project an image onto a screen on the dashboard.

After dihedral doors were considered, Aston Martin and Red Bull opted for gullwing doors to make entry to the cabin as easy as possible. “You stand in the car and drop yourself down into it. The steering wheel comes off to aid that,” said Nurnberger.

F1 performance

From the cabin rearwards, the car has “an F1 layout” for its cooling, engine and transmission systems. A “high-revving, high-capacity” V12  provides the power. The mid-mounted, naturally aspirated unit is bespoke, bearing no relation to the twin-turbo 5.2-litre V12 used in the new DB11. Aston is tight-lipped on precise power output, saying only that it’s aiming for a 1:1 power-to-weight ratio. A lightweight carbonfibre structure is expected to help keep the car’s weight below one tonne, which implies an output in the region of 900bhp.

There’s also an F1-inspired energy recovery system (ERS) to harvest kinetic energy from braking. Aston won’t say if this power will be used to augment the V12’s output. Intriguingly, the company has said the car has no reverse gear, so reversing could be done via power harvested by the ERS.

Road versus track

There will be some slight visual differences between the road and track cars, with the track version having wider front wings, bigger tyres and a bigger rear aerofoil.

Under the skin, there will be some more significant changes to the running gear and carbonfibre suspension is being contemplated for the track version. The car will have switchable driver modes, including an extreme track mode, with suspension that can be lowered.

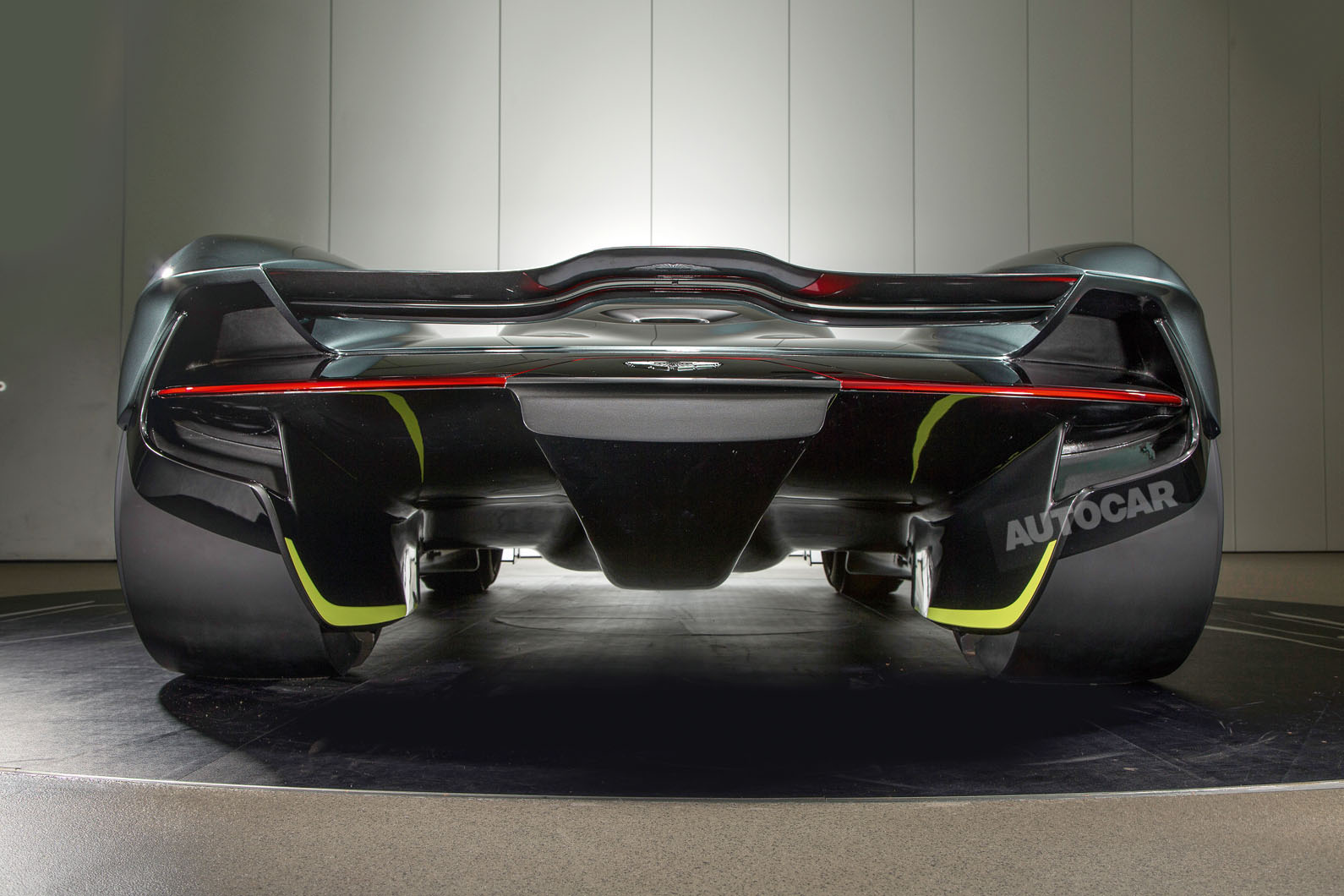

The AM-RB 001 has a small, adjustable, two-plane rear spoiler. “The rear wing will be an active element, but it doesn’t actually do that much. All it is doing is controlling the air off the top surfaces of the car,” said Palmer. “With your rear aerofoil, you want to cut the laminar flow and then you want to cut it as fast as you can so you don’t create drag. So you want it as far back as you can get it on the car within the limit of the regulations.”

The engine’s exhaust exits from the centre of the rear bodywork and blows air onto the rear wing — an extrapolation of the ‘exhaust blown diffuser’ idea that was pioneered by Newey in F1 a few years ago.“On the final car, the exhaust is going to move slightly more rearward in the package to have a great effect on the rear wing,” said Palmer.

Aston is promising that the AM-RB 001’s futuristic feel will extend to the interior, which it will show at a later date, when it will also reveal specifics about the powertrain.

Due in 2018

The first prototype will begin testing in the middle of next year. The task of engineering the AM-RB 001 will be shared between Q by Aston Martin Advanced (the company’s special projects division) and Red Bull Advanced Technologies, with production taking place at Gaydon.

The AM-RB 001 is scheduled to reach owners in 2018. Palmer revealed that “more than 300 expressions of interest” had been received for the car after it was shown to a select group of potential customers in Monaco in May.

The car’s price is put at “£2-3 million” and those invited to buy one will be expected to lay down a deposit of £500k. Aston enthusiasts who have previously bought a limited-edition car such as a Vulcan or One-77 will get a guaranteed place on the waiting list. Half a dozen people are keen to buy both road and track variants.

“Deciding who will be considered for a car is a relatively new headache for us,” said Palmer. “With Aston Martin Vantage GT12 and GT8, Vanquish Zagato and this, I don’t think Aston has ever been in a situation where it has to invite customers to buy. It is a nice problem and it bodes well for DB11, which is also significantly oversubscribed.”
